Pool equipment room ventilation: the brief before a noise enclosure

Pool equipment room ventilation is the record of how air enters and leaves, written before a noise enclosure is chosen. In a 2 January 2020 PoolPro interview, commercial aquatic consultants describe pump rooms where chemical fumes and carbon monoxide stay inside, metal corrodes, and an exhaust fan with no fresh-air return leaves the room uncleared. A residential gas pool and spa heater installation manual treats indoor combustion air, the vent required inside an enclosure, and chemical fumes in that air as separate items from the outdoor vent shipped on the heater. Public-pool equipment-room language in the 2023 Florida Building Code, 8th edition, asks for positive floor drainage, room ventilation and working clearance where that code is adopted. Collect those pages on the sheet below. Fan capacity, acceptance of a below-grade gas heater, and any decibel result come from the project designer and the authority having jurisdiction.

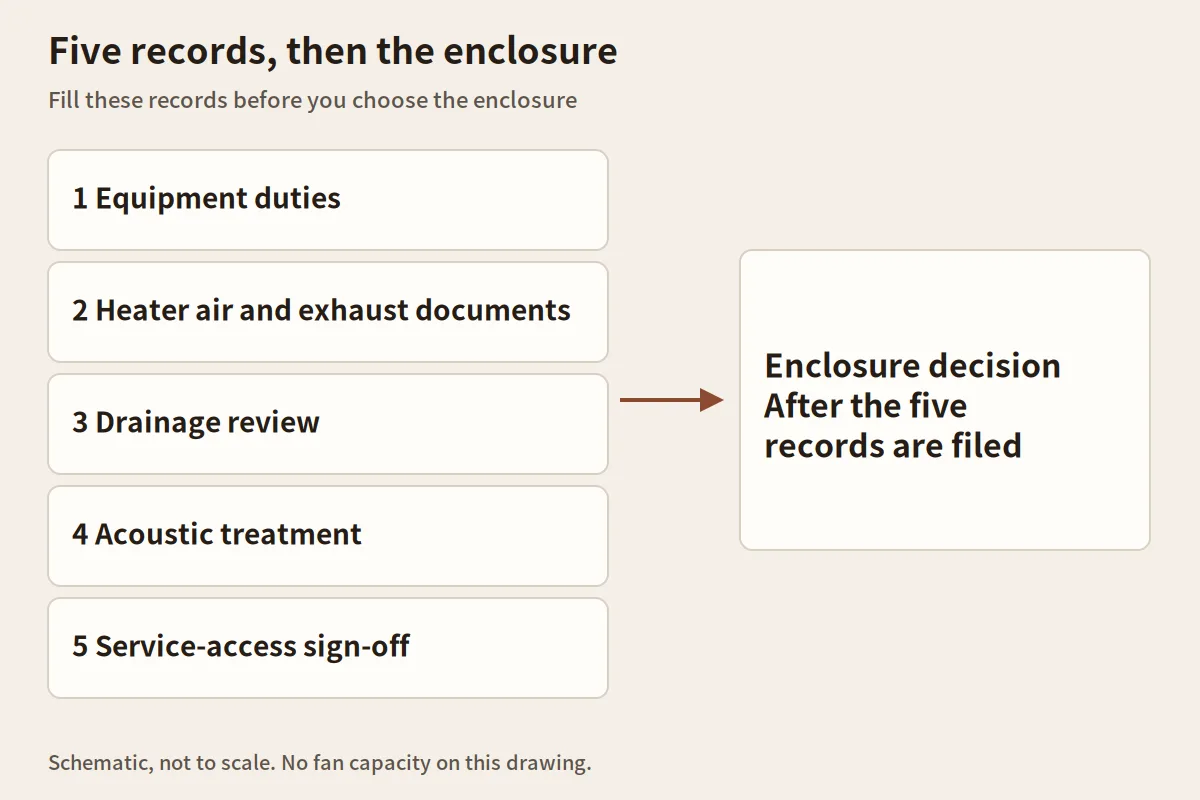

The room brief

Copy this sheet into the project file. Leave a blank empty until the named document is in hand.

Takeaway: The enclosure is a later choice. The five fields are the file you need first.

Which duties does the room have to list?

List every machine that burns fuel, meters chemicals or rejects heat before anyone draws the enclosure. Katie Crysdale, principal of Lakeview Aquatic Consultants, told PoolPro that pump rooms are rarely given enough room to reach the equipment, and that airflow should pull fumes and exhaust out of the building. David Penton, founder of Fluid Dynamics Pool and Spa in Fullerton, California, added that a room of pumps throws off heat even when no heater is running, and that equipment from other trades in the same room adds to that heat.

Corroded pipe brackets are Crysdale's field sign that fumes have been staying in the room. A strong chlorine smell is another, with a limit Rudy Stankowitz of Aquatic Facility Training & Consultants in Gainesville, Florida, described: technicians who work in chlorine all day can lose the ability to smell it. He wants a handheld air-quality monitor because, in his experience, most commercial pump rooms have no detector for chlorine gas or carbon monoxide.

Write the duty in plain words: filtration pump, jet pump, gas heater, chemical feeder, or another trade's unit. A shared pump still gets one line for each job it does.

Common mistake: Calling the whole space a pump room and stopping there. A gas heater and a chemical feeder do not share the filtration pump's air problem.

Takeaway: The duty list is the input to the air and access review. A fan note written before that list has nothing to check against.

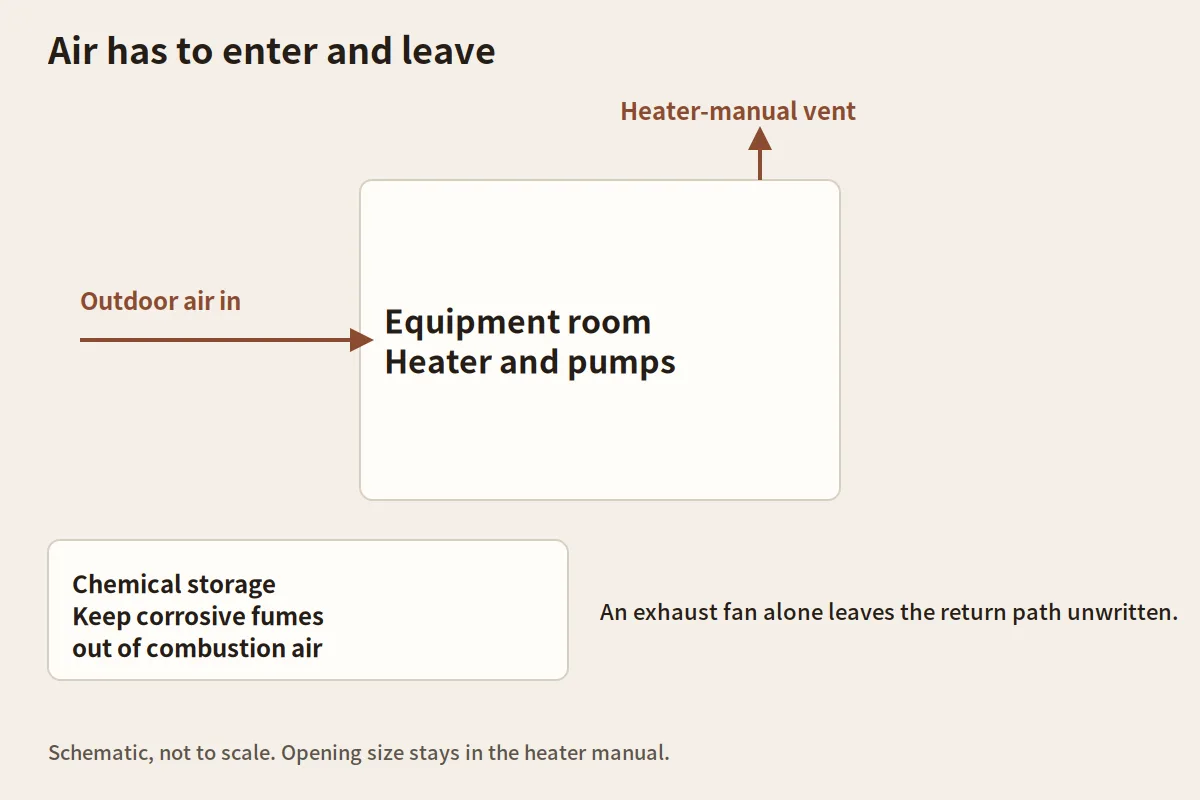

Which combustion-air and exhaust pages do you attach?

Attach the installation manual for the gas heater that will actually be installed, and mark the pages for indoor air, the vent used in an enclosure, and chemical fumes. The manual read for this guide is one manufacturer's residential pool and spa heater guide. Read it for a heater whose nameplate matches that guide. A different heater needs its own manual, and a vault in general is outside that document.

That manual ships the heater with an integral vent for outdoor installation. An indoor location or an enclosure has to use the vent the manual specifies, and only that vent. It warns against a draft hood, because the burner blower puts the exhaust under pressure and a draft hood can blow exhaust into the room. For an indoor installation it says the room needs air for combustion and for ventilation around the heater, with two permanent openings to outdoor air, one high and one low. Where room air may be short, the same manual describes a direct outdoor-air intake. Copy those pages into the brief and leave the free area on the manual's table for the unit on the nameplate.

Two limits in that manual belong on the same sheet. Combustion air that picks up corrosive chemical fumes can damage the heater, and the manual treats that damage as a warranty condition. The access panels have to be on for the heater's own ventilation, and the manual says to keep a run with those panels removed to five minutes or less. If a drain pan is added because a leak would damage the building, the pan has to leave the airflow clear. A propane-fired unit in a pit or other low spot is called an explosion risk, because propane is heavier than air. The manual tells the installer to ask the local building official. Acceptance of a below-grade gas heater stays with that official.

The same manual recommends carbon monoxide detectors near the appliance and in occupied rooms next to it when the heater is indoors, and it limits the heater to pool and spa water. Clearance to combustible surfaces, and space between heaters so one unit's exhaust does not foul the next, stay on the manual's clearance pages. Copy those figures into the brief.

Common mistake: Adding a discharge fan and an exhaust pipe, then treating combustion air as finished. Penton told PoolPro that fresh air has to come back in, through louvered doors or ducts.

Takeaway: The outdoor vent shipped on the heater is the outdoor arrangement. An enclosure that makes the installation indoor has to follow that manual's indoor pages for the unit on the job.

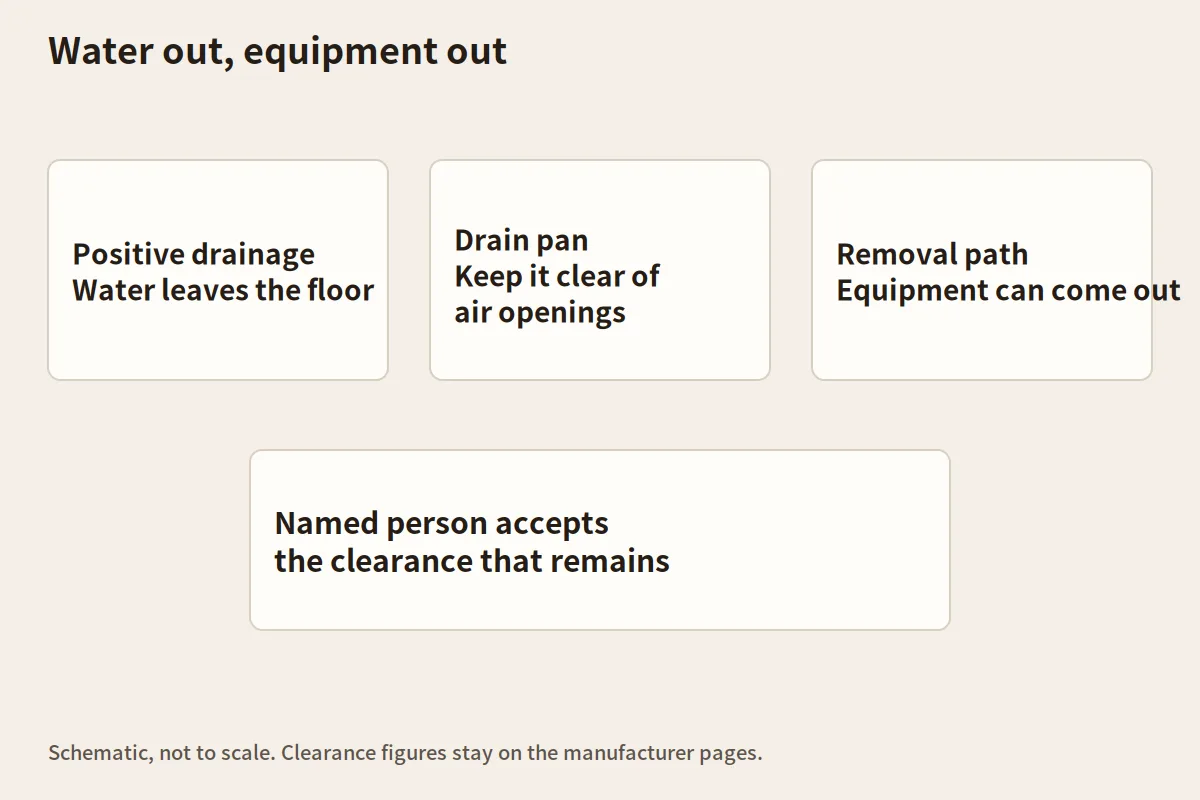

What should the drainage review show?

Show where water enters and where it leaves, and show that the path does not cover the air openings the heater manual requires. Penton told PoolPro to look past ventilation at the rest of the room, including double containment where chemical tanks are present.

The 2023 Florida Building Code, 8th edition, in its public swimming pool equipment-room provisions, calls for a concrete or other nonabsorbent floor with a smooth slip-resistant finish and positive drainage, and a sump pump where the floor needs one. Those provisions also call for forced-draft or cross ventilation, clearance the manufacturer prescribes so equipment can be maintained and removed, and they keep storage of chemicals that emit corrosive fumes from blocking inspection. Below-grade rooms get further access and ventilation language in that text. Use the sentences where that edition is the adopted code. A residential heater manual and a trade interview do not turn them into a permit for your project.

On the brief, mark wash-down, a leaking union, rain at a door or vault lid, and the heater drain pan. If chemical tanks sit in the room, mark their containment and whether fumes can reach the heater's combustion air.

Takeaway: Drainage and the air openings are one review. A pan or a curb that covers an opening fails the heater manual even when the floor itself drains.

How do you record noise control without a decibel number?

Write what the enclosure may close, and what it has to leave open for air and for service. A decibel result needs a test of the built treatment. None is reported here.

Crysdale's practical note in the PoolPro interview is modest: vents in an exterior door, or propping that door while a technician is inside and closing it on the way out, without leaving the room open to anyone passing. That keeps air moving during a service visit. It is a service habit, and it is separate from the vent the heater manual specifies. On the brief, name the place people hear the equipment, the paths that carry both sound and air (door, louver, wall, lid), and the treatment someone has proposed. Line that treatment up against the air-path documents and drop any seal that closes a required opening.

Common mistake: Sealing the door and the louvers to kill pump noise, then finding that the heater manual required those openings.

Takeaway: Acoustic treatment is a constraint list. It becomes a product choice after the air and access fields are filled.

Who signs service access?

The person who will service the equipment signs that the manufacturer's clearance and the removal path still exist after the enclosure. Crysdale's point was that rooms should fit the equipment and let a technician reach it, and that they rarely do. Penton said a vault should be evaluated against OSHA requirements. As a minimum he looks for, he described signage at the entrance stating that access is restricted and naming the hazards, a suitable fire extinguisher, and an eyewash where chemicals are present. When the room is unsafe for the crew, he wants that in writing to the property manager, with lock-out and tag-out as the step he uses until the room is changed.

Where the Florida public-pool text is the adopted code, it asks for the clearance the manufacturer prescribes so a unit can be maintained and removed without disturbing other piping. The heater manual asks the installer to keep its printed clearances, including space so exhaust from one heater is not drawn into the next, and to leave the access panels on for ventilation. The sign-off line names the person, the drawing number and the manual revision.

Takeaway: An enclosure that blocks removal is unfinished, even when the air path is already drawn.

When this brief does not apply

Fan capacity stays in the adopted code and in the heater manual's own air-supply table for the unit on the nameplate. This brief publishes no air-change rate. A below-grade gas heater still needs the local official and the manual's propane warning. The warning is a reason to ask, and the pit layout is theirs to accept or refuse.

Chemical-room ventilation is a different design. The heater manual and the Florida public-pool equipment-room text both treat corrosive fumes as something to keep away from the equipment and its combustion air. Chemical storage rooms need their own design.

Indoor pool-hall ventilation is a different room. Manufacturer notes on pool-hall systems that could not be read for this page are not pump-room evidence. A residential heater manual covers that heater. The PoolPro interview covers commercial pump rooms the three consultants described. A backyard vault still needs its own manual and its own adopted code.

What to request from the designer or supplier

Centaur Spa Journal publishes this briefing sheet. Ask the project's aquatic designer, the manufacturer of the heater on the drawings, or the installing contractor for the documents below.

Keep the circuit and cover-closed load record on the pool and spa equipment page. That sheet sits beside this room brief. The air, drainage and access fields stay on this page.

Frequently asked questions

Takeaway: When the manual on the nameplate and a general article disagree, follow the manual and the adopted code.

Methods and sources

Three documents were read on 11 October 2026. Claims stay inside what those documents say. The PoolPro article points to model aquatic-health and pool-code documents and says local codes set the specific ventilation requirement. The air-change figure in that article stays in the article.

• David Conrads, Avoiding Pump Room Hazards, PoolPro, 2 January 2020 Interviews with Katie Crysdale, Rudy Stankowitz and David Penton. Fetched 11 October 2026.
• Pentair residential gas pool and spa heater installation and user guide (English PDF) Indoor combustion air, enclosure venting, chemical fumes, drain-pan airflow and the propane low-spot warning. Fetched 11 October 2026. Use it for a heater whose nameplate matches that guide.
• UpCodes mirror of the 2023 Florida Building Code, Building, 8th edition, public swimming pool equipment rooms Fetched 11 October 2026. Use it where that edition is adopted.

Takeaway: Re-read the manual revision that matches the heater nameplate before the enclosure is ordered. Another edition can change the vent and the air openings.
