Spa LED and Fiber Optic Lighting: Lighting Duties, Service Access and Retrofit Checks

Treating fiber optic pool lighting and submerged LED fixtures as interchangeable replacements can leave spa steps under-lit or force costly conduit rework during a retrofit. Separate ambient perimeter or star-field accents from useful underwater vessel illumination first, then verify component locations, conduit code compliance, and wet-versus-dry service access before approving the lighting schedule.

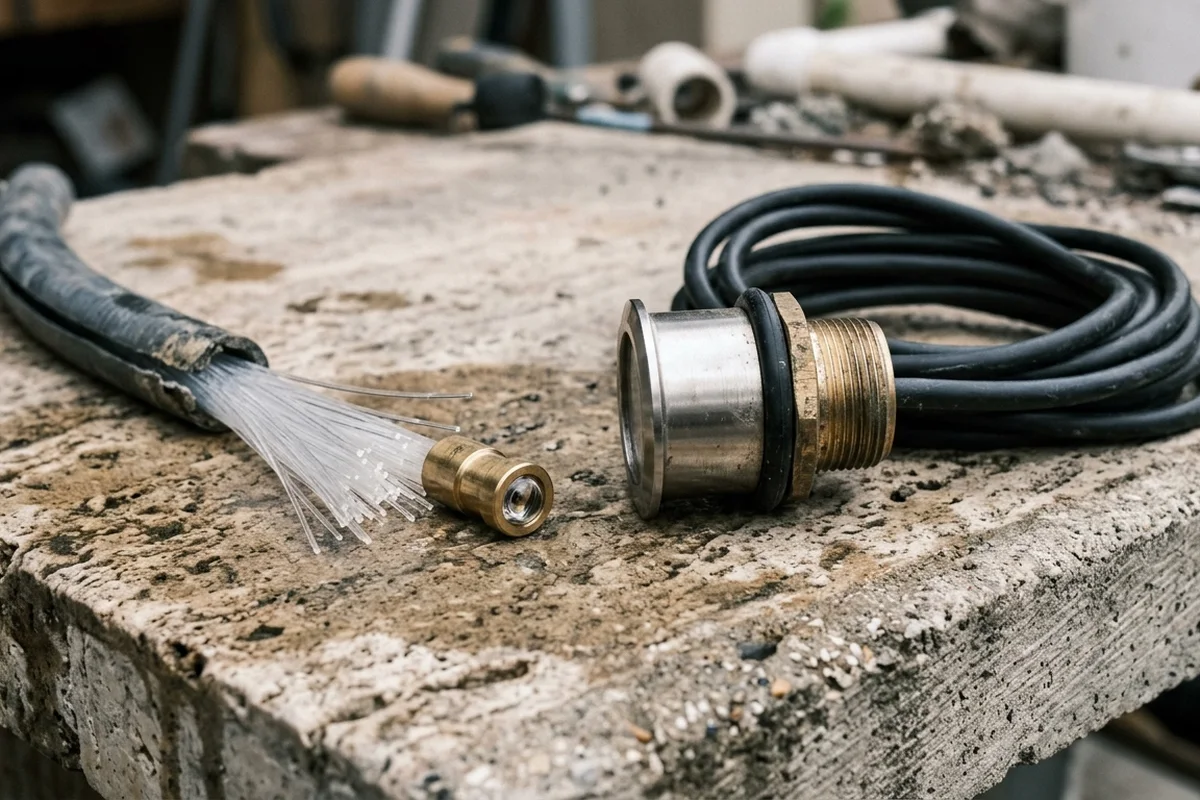

Unpowered optical fiber bundle with brass lens fitting beside a sealed stainless and brass nicheless LED luminaire with jacketed cord on a concrete bench
Wet-end hardware comparison on a workshop bench: an unpowered multi-strand optical fiber bundle terminating in a machined brass lens collar (left) beside a potted 1.5-inch nicheless LED luminaire with integral low-voltage cord and sealing O-ring (right).

When specifying spa lighting or evaluating a fiber to LED pool light conversion, assign each lighting duty separately rather than declaring one technology a universal winner. In a fiber optic pool lighting system, the powered light engine, cooling fan, and color wheel remain inside an above-grade dry enclosure while unpowered optical strands deliver zero-voltage perimeter or floor accents. In a submerged LED system, low-voltage electrical conductors run through code-compliant conduit to a sealed underwater luminaire that provides direct basin and step illumination. Use the lighting-duty matrix, unpowered conceptual layout, and product-example retrofit checks below before removing existing fiber cables or approving a new spa lighting brief.

How do lighting duties and component locations differ between fiber optics and submerged LEDs?

Comparing LED vs fiber optic pool lights starts with separating what the light must accomplish in the water from where the electrical components live during maintenance. Submerged LED luminaires project direct illumination across steps, benches, and footwells. Optical fiber cables carry light only—keeping all electrical power, heat, and moving parts inside a dry-side illuminator cabinet—making them suited for zero-glare starry floor points or coping perimeter outlines rather than safety or task illumination.

Scroll horizontally to see all columns.

Scroll horizontally to see all columns →

System & lighting dutyWet-zone terminationDry-side equipment & power boundaryRoutine service location & water-level impact
End-glow fiber optic accents (star floor points / wall lenses)Unpowered optical fiber strand and lens fitting only; no electricity or heat in waterDry-side illuminator cabinet (lamp or LED light engine, cooling fan, color wheel) mounted above gradeServiced inside the dry illuminator cabinet without lowering spa water or pulling wet conduit cords
Side-glow fiber optic perimeter cable (coping / tile-line outline)Unpowered side-emitting fiber track clipped along the coping or waterline revealDry-side illuminator enclosure outside the wet vessel zoneLamp, dust filter, or color-wheel maintenance stays in the dry box; cable inspection stays at the coping channel
Submerged nicheless LED luminaire — wet conduit modeSealed low-voltage LED fixture threaded into a 1.5-inch wall fitting (water fills conduit behind fitting to spa waterline)Listed pool/spa isolation transformer (UL 379 / WDGV) and deck junction box or conversion towerSealed non-serviceable fixture and factory cord must be pulled back to the junction box or tower with a fish tape
Submerged nicheless LED luminaire — sealed (dry) conduit modeSealed low-voltage LED fixture with front O-ring seal (Pentair kit P/N 620463 example) blocking water from the conduitListed pool/spa isolation transformer and elevated junction box with internal cord slackSpa water level must drop below the wall fitting before unthreading the luminaire so water does not flood the sealed conduit

Do not treat perimeter side-glow cable or pinpoint floor fibers as a substitute for step and seat visibility. In a custom hydrotherapy vessel, designers frequently specify both systems on separate schedules: submerged nicheless LEDs aimed away from seated sightlines for safe entry and footwell visibility, paired with dry-box fiber strands embedded in bench risers or floor tile joints where pulling replacement electrical cords through multi-bend conduits is impractical.

Coordinate lighting circuit schedules and control states with the pool and spa equipment hub and align fixture aim with bench elevations in the in-ground spa design brief.

Common mistake: Counting decorative fiber optic perimeter tracks or star-floor points toward step, entry, or safety illumination, or assuming a submerged LED can be relamped without pulling its factory cord through the conduit.

Takeaway: Assign step and seat visibility to submerged luminaires and keep perimeter or star-field fiber circuits categorized strictly as ambient accents.

How do you map the unpowered wet zone against dry-side service boundaries?

Before selecting hardware or approving a fiber to LED pool light conversion, map the installation across three physical zones. Separating the dry equipment pad, the deck transition path, and the wet vessel shell clarifies which components carry voltage, which chases must meet electrical raceway code, and where a technician stands during maintenance.

Unpowered Conceptual Layout: Three-Zone Boundary Map

Conceptual architectural responsibility map only (not a wiring diagram or scale shop drawing; verify all clearances and ratings in the project's governing code and product manuals).

Zone A — Dry Equipment Pad / Vault

Houses either the dry-side fiber illuminator cabinet (light engine, fan, color wheel) or the listed pool/spa isolation transformer / conversion tower. Requires GFCI supply protection, thermal/current fuse access, and dry standing clearance outside the required horizontal setback from the water edge.

Zone B — Deck Junction & Conduit Path

Connects the dry pad to the shell. For fiber optics, the sleeve carries unpowered optical cable. For low-voltage LEDs, the raceway must be code-compliant electrical conduit (such as watertight non-metallic PVC with sweep elbows) terminating at an elevated deck junction box or conversion base with spare cord slack.

Zone C — Wet Shell & Wall Fitting

The submerged termination inside the spa basin. Holds either an unpowered optical lens/side-glow track or a sealed 1.5-inch nicheless LED luminaire. Requires recording whether the fitting operates as a wet conduit or an O-ring-sealed dry conduit, plus fixture orientation away from bather sightlines.

When a retrofit replaces unpowered optical fiber with low-voltage underwater LEDs, the wet-zone circuit crosses into swimming pool electrical code jurisdiction. Under NEC 680.22(B)(6) and 680.23(A)(2), underwater luminaires operating at or below the low-voltage contact limit (15V AC sinusoidal) must be supplied by a listed pool and spa transformer (UL 379 / UL Category WDGV) built with a two-winding isolation design and a grounded metal barrier between primary and secondary windings—never a general-purpose landscape transformer; see the NEC 680.23(A)(2) isolation transformer reference.

Takeaway: Draw the dry-box, deck-junction, and wet-fitting boundaries on the conceptual layout before specifying whether conduits carry unpowered fiber strands or listed low-voltage conductors.

What do conversion tower manuals require before replacing an above-deck fiber illuminator?

Many legacy gunite spas installed in the 1990s and 2000s used above-deck halogen or metal-halide fiber illuminator towers. As a documented product example, S.R.Smith's poolLUX Power Tower manuals (single-circuit PT-6001, P/N 79-15280-00, and dual-circuit PT-6002, P/N 79-15280-01, August 2019) show how a dedicated conversion enclosure replaces an existing Fiberstars 2000 or 6000 Series tower footprint and converts the pad into a 12–13VAC LED power center conforming to UL STD 379 and CSA STD C22.2 #218.1; see the S.R.Smith PT-6001 manual (PDF) / S.R.Smith PT-6002 manual (PDF).

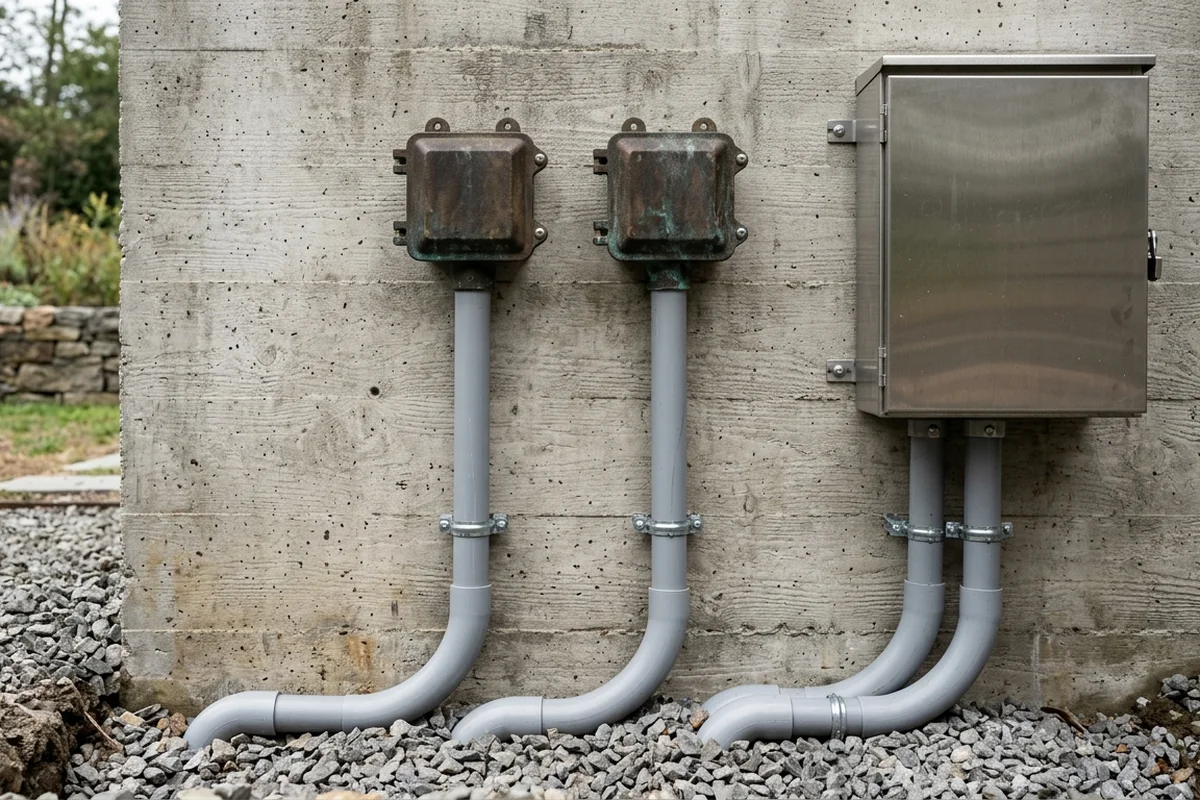

Two weathered cast-bronze deck junction boxes and a brushed stainless conversion enclosure mounted on a board-formed concrete wall with gray PVC conduit sweeps
Dry-side service boundary along an architectural concrete equipment wall: elevated cast-bronze deck junction boxes and a stainless enclosure fed by non-metallic gray PVC sweep conduits rising from the gravel equipment trench.

In those S.R.Smith product manuals, the primary supply requires a 120VAC, 60Hz circuit protected by a 5A GFCI circuit breaker (0.6A maximum draw providing one 60W maximum secondary circuit on the PT-6001; 1.2A maximum draw providing two 60W maximum secondary circuits on the PT-6002), backed by an internal self-resetting thermal fuse and a replaceable 6A current fuse (P/N 36-15017-00) per circuit. To address voltage drop on long conduit runs or higher wattage loads, the terminal block provides a selectable 13VAC tap (swapping the blue 12VAC transformer lead for the yellow 13VAC lead). Those electrical ratings apply strictly to the PT-6001 and PT-6002 product examples and are not a universal 12V design specification.

Physical setback and raceway condition govern whether an existing illuminator pad can be reused. The PT-6001/PT-6002 instructions state that the tower must sit not less than 5 feet (3 m in Canada) from the inside edge of a pool and not less than 1 m horizontally from a spa or hot tub, that existing light conduits must be non-metallic polymeric material (such as PVC) with watertight joints and sweep ells or gentle heat bends, and that at least 12 inches of free 12VAC light cord must protrude into the tower base above the conduit stub-up. Coordinate pad clearances and enclosure access with the equipment vault location and service-access guide.

Common mistake: Assuming an old fiber illuminator pad automatically satisfies horizontal water-edge clearances or that any 12V landscape transformer can feed submerged spa luminaires.

Takeaway: Treat the S.R.Smith PT-6001 and PT-6002 ratings as model-specific product examples and confirm horizontal setbacks, non-metallic watertight conduit, and free cord reach in the actual unit's manual.

Why must 1.5-inch wall fittings and conduit sweeps be checked before pulling out old fiber cable?

At the wet end of a fiber to LED pool light conversion, nicheless 1.5-inch LED luminaires are frequently proposed to thread into existing fiber wall ports. As a documented product example, Pentair's MicroBrite Color and White LED Lights Installation and User's Guide (P/N 523371.F, January 2021, pp. 4–13) and IntelliVibe Micro Luminaire Guide (P/N 619142.A, February 2025, pp. 4–11) specify a 12V AC, 12W nicheless fixture measuring 3.0 inches (76 mm) in overall body length with a 1.83-inch (46 mm) lens outer diameter. Page 10 of both manuals establishes two mandatory verification gates before any existing fiber optic cable is removed; see the Pentair MicroBrite installation guide (PDF) / Pentair IntelliVibe Micro installation guide (PDF).

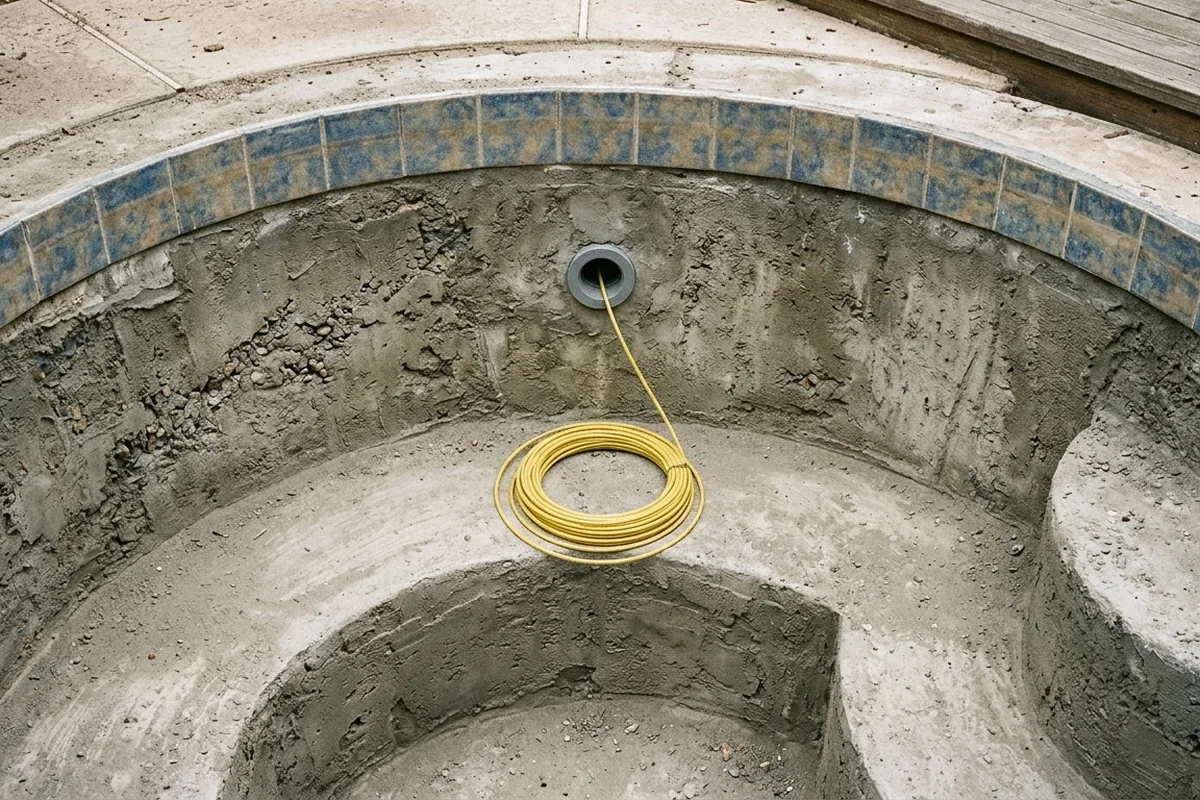

Drained shotcrete spa shell with a 1.5-inch threaded wall fitting below the waterline tile band and coiled yellow fish tape prepared for a conduit pull check
Pre-finish inspection inside a drained concrete spa shell: a 1.5-inch wall fitting set below the waterline tile band with coiled yellow fish tape staged on the bench to verify conduit sweep clearance before pulling a replacement cord.

First, the installer must verify that the replacement luminaire will physically fit inside every existing 1.5-inch wall fitting by comparing the existing port's internal throat profile and thread depth against the fixture's dimension drawings. Second, the installer must verify that the conduit previously used as housing for the unpowered fiber optic cables meets all applicable electrical codes for swimming pool electrical conduit. A thin-wall non-code chase tube or a conduit blocked by tight 90-degree plumbing elbows behind a shotcrete spa bench cannot be approved for pulling a jacketed low-voltage power cord.

Spa lighting service access also depends on whether the 1.5-inch wall fitting is configured as a wet conduit or a dry (sealed) conduit. In the Pentair MicroBrite manual example, a wet conduit allows water inside the raceway behind the fitting, whereas a dry/sealed conduit uses a front body O-ring (Pentair kit P/N 620463) to seal the wall fitting—requiring the spa water level to be lowered below the fitting before unthreading the light. Because the luminaire and factory cord form a sealed non-serviceable unit, installers leave 3 to 6 inches of cord slack at the fitting, rotate the light body approximately 5 turns counter-clockwise before threading it clockwise into the wall fitting, and retain at least 6 inches (15.2 cm) of cord slack inside the deck junction box (mounted at least 4 inches / 10.2 cm above ground or 8 inches / 20.3 cm above maximum water level, whichever is higher, and at least 4 feet / 1.22 m from the pool edge per the manual's US NEC placement note). Upward-facing vertical installations require at least 4 inches of water cover above the lens and are restricted to non-occupant areas.

Scroll horizontally to see all columns.

Scroll horizontally to see all columns →

Verification gateProduct-example reference (verify your exact model)Pre-demolition inspection questionProject record / status
1. Transformer / conversion tower listing & setbackS.R.Smith PT-6001 / PT-6002 (UL 379 / CSA C22.2 #218.1; >=5 ft pool / >=1 m spa setback)Does the dry-side power center carry a pool/spa isolation listing and meet horizontal setback from the spa edge?—
2. Conduit electrical code compliancePentair MicroBrite P/N 523371.F p. 10 & S.R.Smith PT-6001 p. 2 (watertight non-metallic PVC)Does the existing fiber sleeve meet applicable swimming pool electrical conduit code with watertight joints?—
3. Sweep geometry & cord pull pathS.R.Smith PT-6001 pp. 6–7 (sweep ells / gentle heat bends; >=12 in cord in tower base)Are conduit bends gradual enough to pull the replacement cord jacket without binding behind the spa shell?—
4. 1.5-inch wall fitting internal profilePentair MicroBrite P/N 523371.F pp. 10, 13 (3.0 in / 76 mm body length; 1.83 in / 46 mm lens OD)Does the existing 1.5-inch wall fitting throat clear the full length and diameter of the selected LED body?—
5. Wet conduit vs. O-ring sealed dry conduitPentair MicroBrite P/N 523371.F pp. 4–9 (dry conduit O-ring kit P/N 620463)Is each port a wet conduit or a sealed dry conduit requiring water level to drop below the fitting for service?—
6. Cord slack, pre-twist & upward-aim limitsPentair MicroBrite pp. 4–8 (3–6 in fitting slack, ~5 CCW turns, >=6 in J-box slack, >=4 in cover in non-occupant vertical zones)Are junction-box elevation, cord slack, and sightline/non-occupant placement recorded on the section drawing?—

Record wall-fitting penetrations alongside shell waterproofing in the architectural in-ground spa construction guide and log wet-versus-dry conduit service procedures in the pool and spa maintenance log so future technicians know whether water must be lowered before unthreading a fixture.

Takeaway: Never cut or use an old fiber cable as a pull line until the 1.5-inch wall fitting profile, electrical conduit code compliance, and sweep-elbow pull path are verified on site.

Which records and retrofit questions should you assemble for your project team?

Before approving a new custom spa lighting schedule or authorizing a contractor to extract legacy fiber cables, assemble the lighting-duty matrix, the three-zone boundary map, and the original manufacturer installation manuals for every proposed component. Have your project designer, electrical contractor, or equipment supplier fill in the blank verification schedule below with exact model numbers, listing references, and on-site conduit findings.

Download the blank spa lighting duty and retrofit review schedule (CSV)

The downloadable CSV groups the review into three actionable records: lighting duty assignment, component and service-location boundaries, and fiber-to-LED retrofit verification. Leave any unconfirmed cell blank until the responsible reviewer supplies the primary document or field measurement.

Scope boundaries: This editorial guide does not provide a universal 12V electrical design, step-by-step wiring instructions, lumen or brightness equivalence between fiber and LED, waterproof IP certification ratings, or operating lifetime hours. S.R.Smith and Pentair manual citations are product-specific examples only. Centaur Spa is an independent editorial publication and does not sell lighting hardware, inspect installations, or provide project quotes.

Takeaway: Keep unknown conduit, fitting, and listing fields blank in the project schedule until the responsible contractor or supplier provides the exact model documentation.

Frequently asked questions

Can a legacy fiber optic conduit always be reused to pull a 12VAC LED pool light cord?

No. As Pentair's MicroBrite and IntelliVibe Micro installation guides explicitly require on page 10, you must first verify that the conduit previously used as housing for the fiber optic cable meets all applicable electrical codes for swimming pool electrical conduit, and that its sweep geometry and 1.5-inch wall fittings accommodate the replacement cord and luminaire body.

Do fiber optic perimeter or star-floor accents count as task or step illumination in a spa?

No. End-glow floor fibers and side-glow coping tracks provide ambient architectural definition while keeping electricity out of the water, but they do not replace submerged luminaires positioned to illuminate steps, benches, and depth transitions.

When does servicing a 1.5-inch nicheless LED light require lowering the spa water level?

In a wet-conduit installation, water sits inside the conduit up to the spa waterline and the fixture threads in without a conduit seal. In a dry (sealed) conduit installation—such as the Pentair MicroBrite dry-conduit configuration using O-ring kit P/N 620463—the spa water level must be lowered below the wall fitting before unthreading the luminaire so water cannot enter the sealed conduit.

Why do fiber-to-LED conversion towers include both a 12VAC and a 13VAC transformer tap?

In S.R.Smith's PT-6001 and PT-6002 Power Tower manuals (a product-specific example), the 13VAC yellow transformer tap is provided to compensate for voltage drop when there is a long cable run between the tower and the underwater lights or a high wattage load on the circuit (up to the 60W per circuit maximum).

Method and sources

Updated October 2026. This comparison and retrofit review framework was compiled from primary manufacturer installation manuals and electrical code education references opened on 17 October 2026. All numerical ratings and clearances cited in the text are product-specific examples from their respective manuals, not universal design rules or independent laboratory measurements.
