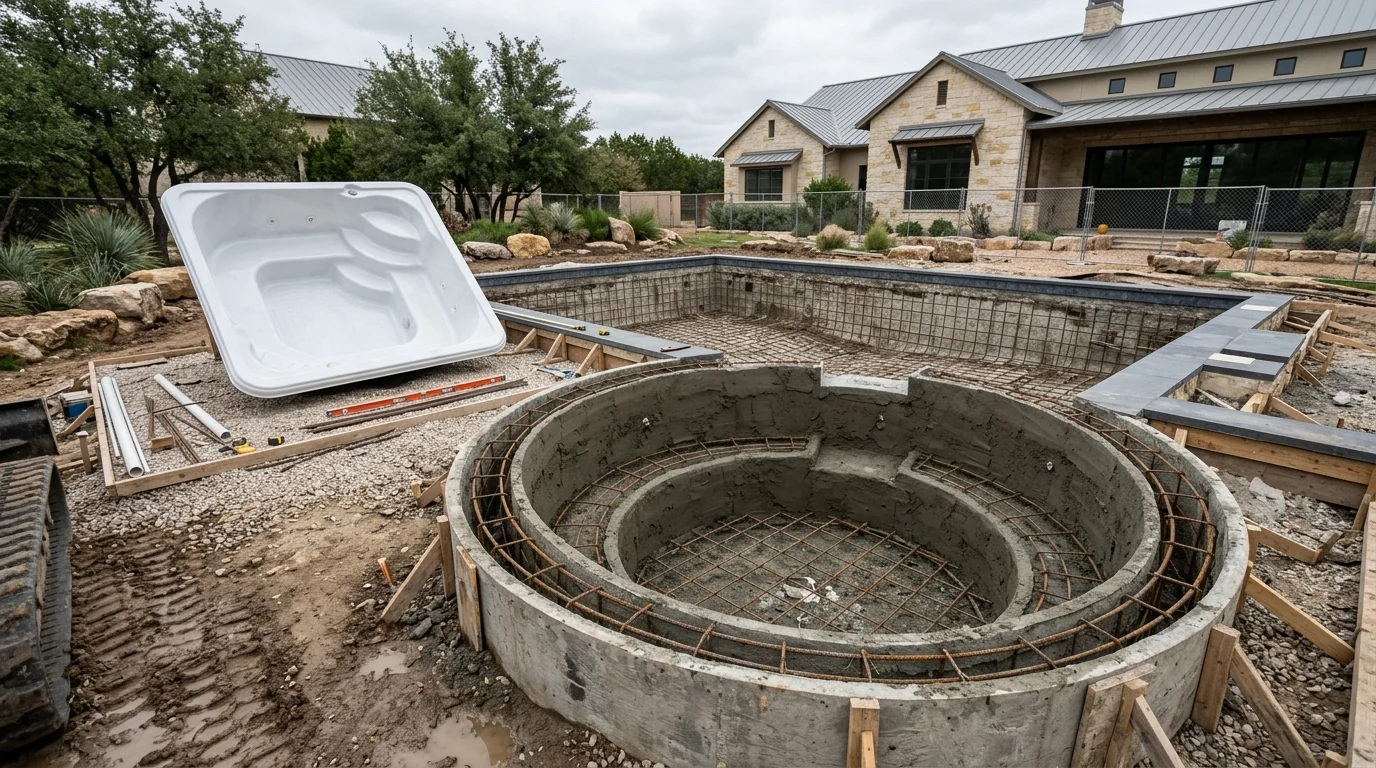

Gunite Pool vs Fiberglass Shell for an Inground Spa

Side-by-side structural and installation comparison

The table below contrasts site-placed concrete spa parameters with factory-molded shell specifications across each verified reference.

1. Constraint 1: Mold geometry, ergonomics, and highway transport width

Under U.S. Federal Highway Administration regulation 23 CFR § 658.15, no State shall impose a width limitation of more or less than 102 inches, or its approximate metric equivalent of 2.6 meters (102.36 inches), on a vehicle operating on the National Network.

In Latham Pool's fiberglass vs. concrete comparison, the large fiberglass pools category is listed at 16 by 35 feet.

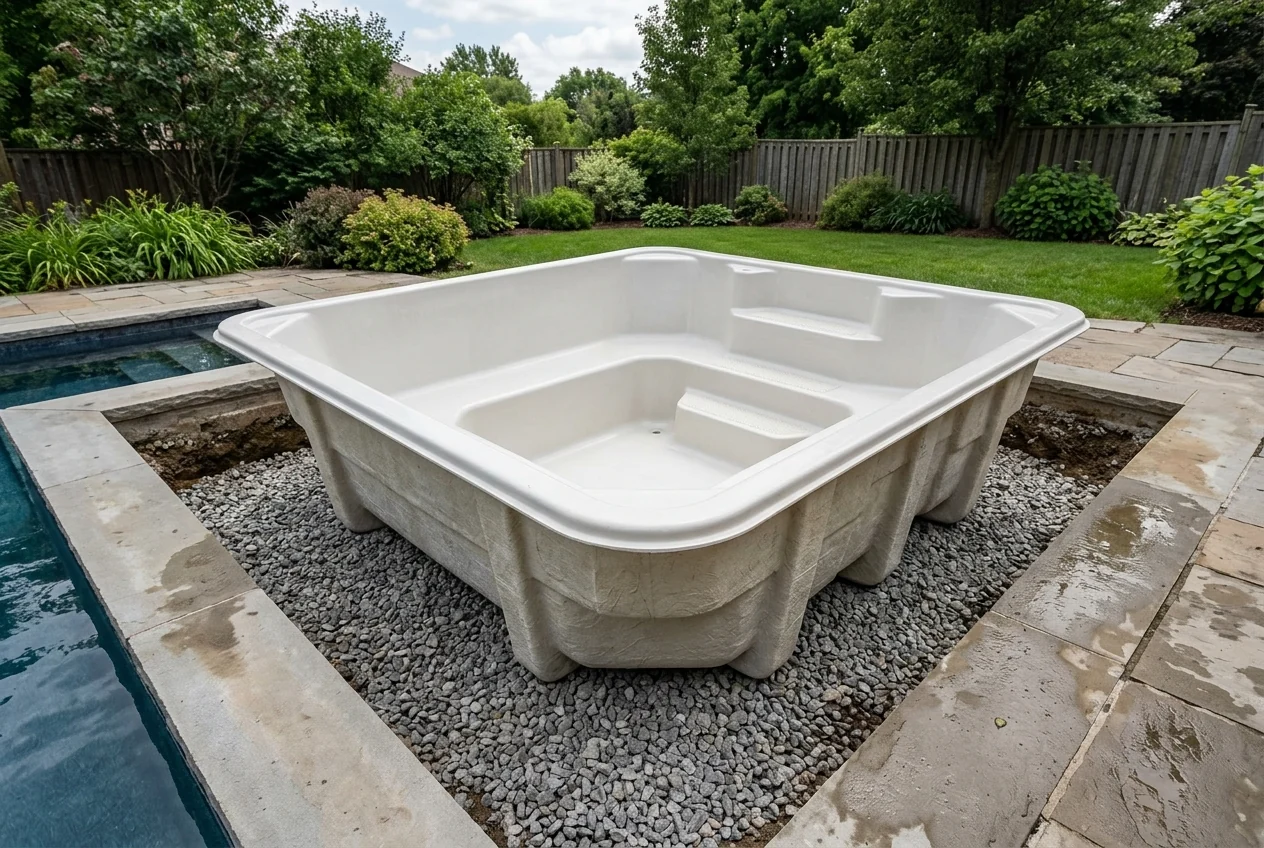

In the Fox Pool / Cardinal Systems Luxury Spas manual, factory shells are offered in Spillover (waterfall effect) and Standard (non-spillover) models with Sterling Silver or Storm Cloud (gray) color options manufactured from lucite acrylic material.

For a site-built perimeter-overflow spa, WaterShapes #23 notes that builders work toward a tolerance of one thirty-second of an inch (1/32 in.) to maintain a minimal, dead-even flow over the spa's full perimeter with no dry spots.

When planning bench geometry in our custom inground hot tub planning and dimensions guide, finished clear footwell width is governed by F = W − B₁ − B₂, where W is finished internal width and B₁ and B₂ are the opposing bench projections at the same section.

2. Constraint 2: Wall penetrations, bulkhead flat landing pads, and spillways

Under the U.S. Access Board Guide to ADA Standards Chapter 10, where an accessible transfer wall is provided at a spa, the transfer wall height must be 16 inches minimum to 19 inches maximum.

In the Hayward Jet-Air III IS1434PAKA manual, the fitting cutout hole in the spa wall needs to be 2-1/2 inches in diameter using a standard 2-1/2-inch hole saw with the supplied gasket.

In the Fox Pool / Cardinal Systems Luxury Spas manual, if installing a light in the spa, the manufacturer recommends a 3-inch LED light with an acrylic/fiberglass niche, and notes that a flat area for the light is located on the second step riser.

Fox Pool / Cardinal Systems also specifies that a spa should be placed no further than 50 feet from the equipment pad.

For concrete wall lighting, Pentair's MicroBrite LED Light installation guide specifies a 3.81 cm (1.5-inch) PVC pipe wall fitting designated For Gunite Only.

When coordinating spillway hydraulics with our raised spillover spa waterfalls guide, Pentair's MagicFalls installation guide specifies planning to supply approximately 15 GPM per foot of waterfall length.

Alongside our 360-degree rimless perimeter-overflow spa resource, Pentair's MagicFalls manual states that the leading edge of the waterfall edge (from which water spills) needs to clear the face of the tile line by at least 3/4 inch.

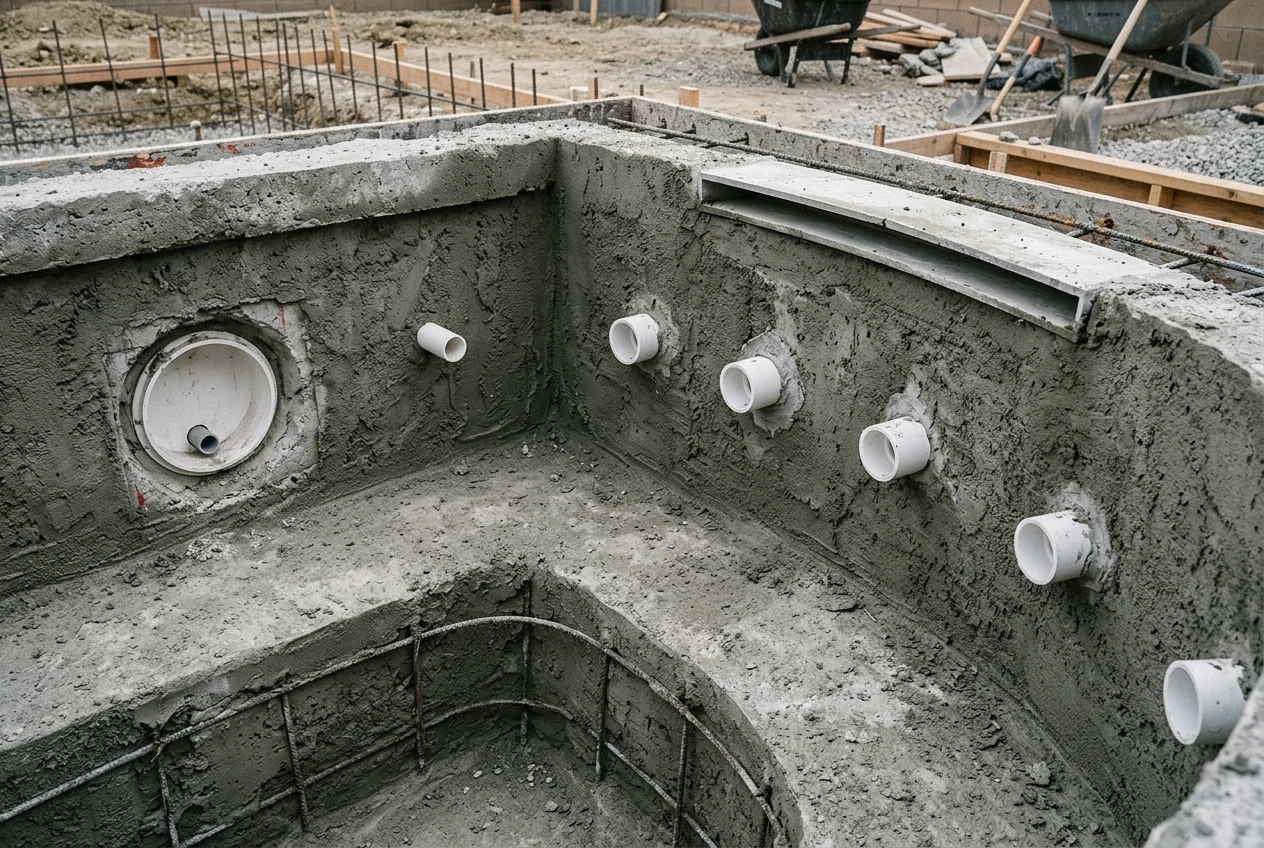

As structural engineers detail alongside our gunite and shotcrete shell thickness and rebar schedules guide, the American Shotcrete Association (ASA, Summer 2018) warns that formwork, embeds, pipe penetrations, or reinforcing steel — such as a spa — can create excessive rebound.

Through-wall fittings, spillways, and safety clearances by shell type

3. Constraint 3: Field curing windows, tile thinset contact, and footwell bearing

In the American Shotcrete Association (ASA, Summer 2018) durability guidelines for concrete watershapes, ACI 350 mandates a maximum water-cementitious materials ratio (w/cm) of 0.45 with a minimum 4,000 psi compressive strength for concrete intended to have low permeability when exposed to water. If concrete water-containing structures are exposed to freezing and thawing while saturated, ASA (Summer 2018) states that a maximum w/cm of 0.42 with a minimum 4,500 psi (31 MPa) compressive strength is required.

ASA (Summer 2018) further notes that wet-mix shotcrete for pools and spas must typically be shot within 90 minutes of batching.

Under USDA NRCS National Engineering Handbook Part 645 Chapter 14 (Specification 33), receiving surfaces are maintained in a moistened condition for 3 hours prior to application of shotcrete.

NRCS Specification 33 also requires that curing air be maintained between 50 degrees Fahrenheit and 90 degrees Fahrenheit for the duration of the curing period.

National Ready Mixed Concrete Association (NRMCA) bulletin CIP 11 warns that concrete allowed to dry immediately in a warm, dry environment can lose as much as 50 percent of its potential strength.

For tiled concrete pools and spas, Pool & Spa News cites the Tile Council of North America (TCNA) rule that 90% of the surface area behind the tile must make contact with the thinset that adheres it to the shell.

For factory-molded Fox Pool / Cardinal Systems shells, the installation manual issues an explicit warning: do not drain the spa during a groundwater saturation condition, and do not leave the spa shell empty for long periods of time.

Pre-construction shell verification checklist

Verify these seven engineering items before ordering a factory spa shell or scheduling gunite and shotcrete placement.

1. Shipping skid and mold envelope: Verify site delivery access for the Fox Pool / Cardinal Systems F16-350 90-by-96-inch spa skid when specifying a factory-molded shell.
2. Foundation under-shell foam: Account for the Fox Pool / Cardinal Systems foundation foam that helps insulate the spas, prevents heat loss, reduces noise from the pump, and provides stability for the plumbing and fittings.
3. Cold-weather concrete cooling rate: Under NRMCA CIP 11, ensure concrete does not cool faster than a rate of 5°F (3°C) per hour for the first 24 hours.
4. Compressive strength test age: Under NRMCA CIP 35, verify that standard compressive strength acceptance tests for concrete are conducted at an age of 28 days.
5. VGBA drain cover compliance: Under 16 CFR Part 1450, confirm that each swimming pool or spa drain cover manufactured, distributed, or entered into commerce in the United States conforms to the entrapment protection standards of ANSI/APSP/ICC-16 2017.
6. Operating water temperature ceiling: Follow the Hayward IS1434PAKA safety limit that spa or hot tub water temperatures should never exceed 104°F (40°C), while a temperature of 100°F (38°C) is considered safe for a healthy adult.

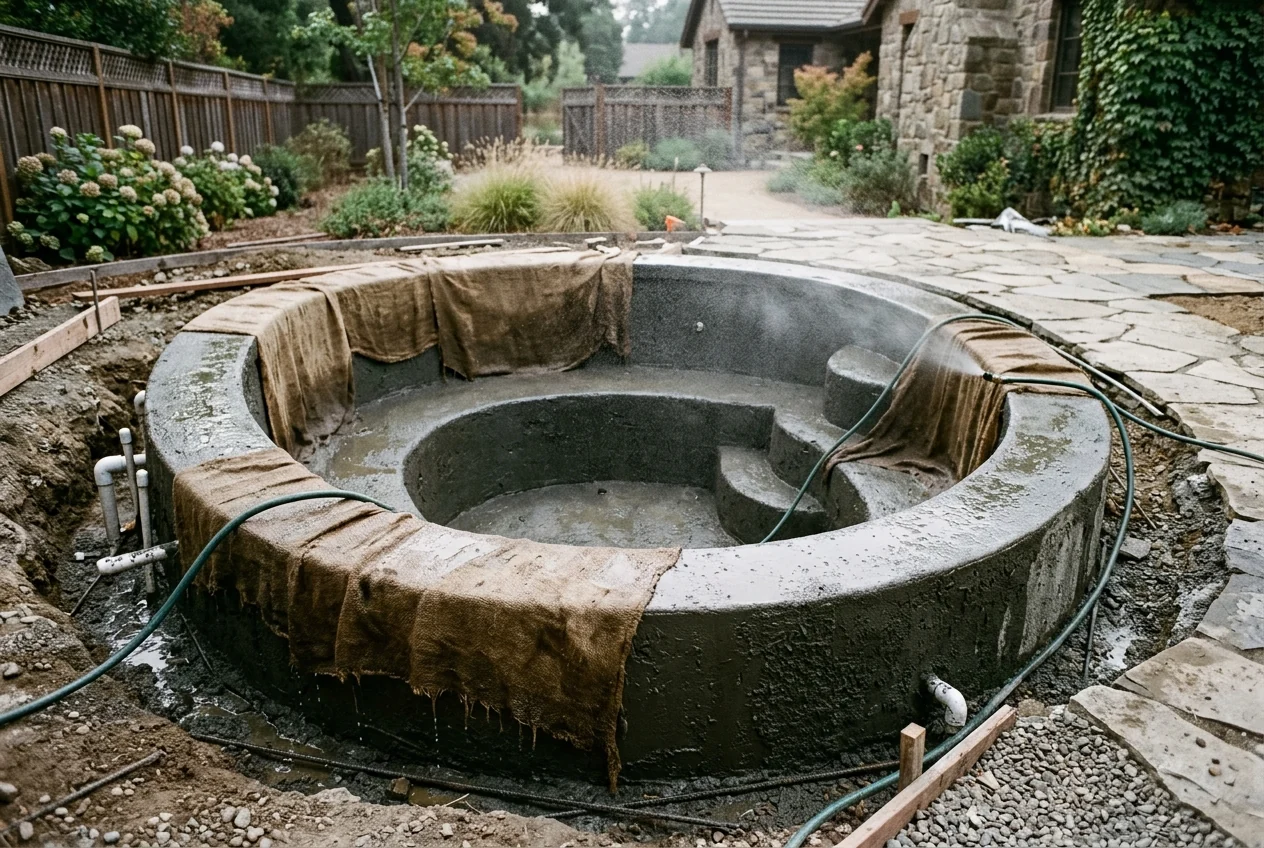

7. Seven-day shotcrete moist cure: Enforce the USDA NRCS Specification 33 requirement that shotcrete is prevented from drying for a curing period of at least 7 days after it is placed.
